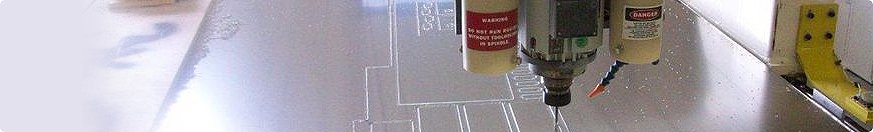

CNC 3 & 5 Axis Routing Services

(Click on thumbnail to enlarge)

2-Butcher Block

2-EPS Styrene

NCAD Products, Inc. is pleased to offer a variety of CNC 3 and 5 axis machining services for machine components, including drilling, boring, pocketing, and profiling. Our materials include all major plastic polymers, as well as some ferrous metals, composite materials, wood, and more.

Because of our combination of cutters, cutting tools, multiple axes, work holding methods, NCAD provides a variety of Routing capabilities. We are ISO and Mil-spec compliant, and can handle almost any production volume, including prototypes. Ready to get started? contact NCAD to learn more.

CNC 3 & 5 Axis Routing Capabilities

Routing Processes

Drilling
Boring
Plastics Trimming
Pocketing

Profiling
Contour Surface Machining
5-Axis Sculpting

Materials (Plastic Polymers)

ABS (Acrylonitrile Butadiene Styrene)
Nylon
Phenolic
Polycarbonate

Polyethylene
Polypropylene
Polystyrene
PVC (Polyvinyl Chloride)

Materials (Other Materials)

Composite Materials
Fiberglass
Metal

Plastic
Wood

Cutters

Flat End Mill
Ball End Mill
Chamfer Mill
Face Mill

Twist Mill
Reamer
Tap

Cutting Tools

High-Speed Steel (HSS)
Carbide

Carbon Steel
Cobalt High Speed Steel

Axis

3 and 5

Type of Collet/ Adapter

Spindle - have a standardized spindle end

Vise

Vacuum Work Holding
T-Nut Work Holding

Equipment Capabilities

Electric-Drive Motors
Variable Spindle Speeds
High Speed Machining

Length

Max
120 in
3048 mm

Width

Max
60 in
1524 mm

Height

Max
36 in
914.4 mm

Production Volume

High Volume
Large Run
Large Scale Production Volume Run
Long Run

Low Volume
Prototype
Small Run
Specialty Production Shop

Lead Times Available

Emergency services available
Quoted on job by job basis
Rush Services Available

Industry Standards

ISO Registered
International Organization for Standardization

Mil-Spec Compliant
Military Specifications

File Formats

AutoCAD (DWG,DWZ)
DXF - Drawing Interchange Format, or Drawing Exchange Format
IGES - Initial Graphics Exchange Specification, ANSI file format.

SolidWorks (SLDPRT,SLDDRW,SLDDRT)
STEP - Standard for the Exchange of Product Model Data
