CNC Milled Missile Wing Deployment Linkage

CNC Milled Missile Wing Deployment Linkage for Military and Aerospace Applications

(Click on thumbnail to enlarge)

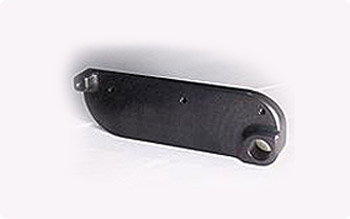

Talon Missile Wing

This wing deployment linkage project was designed for use in the military and aerospace industries. Beginning with a customer-supplied print, we were able to use a 5-axis CNC milling machine to execute profile milling, drilling, tapping, and contour surface machining. The final anodized component, manufactured from 6061-T6 aluminum, measured 6 inches long, 2.5 inches wide, and .750 inches high, and featured helicoil threaded inserts. In total, 5 talon missile wing deployment linkages were manufactured.

Highlights of this CNC Milled Missile Wing Deployment Linkage

Product Description	This deployment linkage is used in the Military/Aerospace industry.
Capabilities Applied/Processes	5-Axis CNC Milling Machine
Equipment Used to Manufacture Part	Milling Machine - HAAS
Overall Part Dimensions	6.0 inches long x 2.5 inches wide x .750 inches high
Tightest Tolerances	±.005" ±1/2°
Material Used	6061-T6 Aluminum
Max Material Finish	125 RMS
Typical Machining Operations	5-Axis Milling Machine - Profile Milling - Drilling (Hole Patten of Axis drilled /bored within ±.003) - Tapping (#10-32 Helicoil Inserts)
Secondary Operation	Helicoil Thread Inserts
Characteristics	Black Anodized
Estimated Part Weight	Less than 1/2 lb
Industry for Use	Aerospace
Delivery Location(State)	Florida
Number of Parts Manufactured	Lot of 5
Delivery Time	4 Weeks
Standards Met	Customer supplied print and 3D Step File
Product Name	Wing Deployment Linkage
